סדרת תאורת אזהרה למטוסים לגבהים גבוהים Medium Intensity
תקן ICAO Annex 14 International Civil Aviation Organization
כולל סוללה נטענת ופנלים סולרים עומד עצמאי ללא צורך במקור חשמל
יבואנים: ענק הבטיחות בע"מ
מק"ט פנימי: 617800

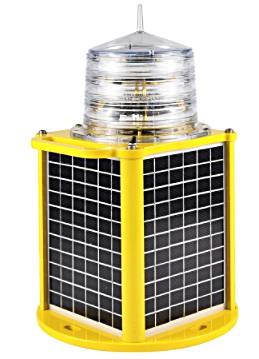

Portable Medium Intensity Type B Solar Aviation Obstruction Light
1.Portable structure design, PC material Lampshade;
2.Advance power management system, improve the battery’s service life efficiently.
3.Special LED chip, high light intensity, low power consumption;
4.High quality rechargeable Lead-acid battery.
Previous ImageNext Image
Light source life:
>100000hours
Light source:
LED
Power supply:
Mono crystalline silicon solar panel
Battery capacity:
12V12AH
Battery type:
Lead-acid battery
Battery life:
2years
Solar panel power:
6wx4
Solar panel voltage:
16.5V
Solar panel life:
>20years
Power consumption:
15W
Vertical divergence:
3°
Horizontal out-put:
360°
Visual range:
15km
FAA classify:
L864/865
Overall size(mm):
276*276 *480
Installation size(mm):
322 *200* M8
Weight:
8.5Kg
Emitting color:
Red
Storage temperature:
-40℃~+70℃
Working temperature:
-10℃~+60℃
Wind load:
80m/s
Working mode:
Flashing 20~60times/min
Light intensity:
2000cd
Protection Standard:
IP68
Continuous working time:
15days(10hours a day)
Optically Controlled Ambient Brightness:
300±100LUX
Function & Features
1.Continuous working time in rainy day can reach more than 15 days(10 hours a day).
2.Photocell can switch ON/OFF the light in rainy days or at night automatically.
3.Standardization of optical design, high photoelectric conversion efficiency.
4.Special LED chips with brightness,high conversion efficient and long life.
5.Provide ability of lightning protection, light fastness, resist snow and rain.
6.LED technology, working stable, save cost of maintain.
7.Internal use renewable solar dedicated lead-acid battery, service life can reach more than 2 years.
8.Can customize lithium iron phosphate battery to improve service life and working temperature range.
Usage notice
1.Please read the instruction carefully and then use the device correctly.
2.Solar powered Aviation obstruction light must be installed in a sunny place to keep it working continuously.
3.Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4.If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5.Please turn off the device and put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6.If there any other problem please contact us.
Application
High building
Bridge
Tower
Telecom tower
Chimney
Runway
Heliport
Traffic barrier
Tower crane
Dimension drawing
