סדרת תאורת אזהרה למטוסים לגבהים גבוהים Medium Intensity
תקן ICAO Annex 14 International Civil Aviation Organization
יבואנים: ענק הבטיחות בע"מ
מק"ט פנימי: 815400

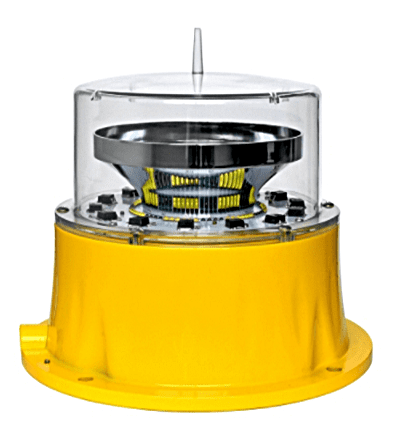

Medium Intensity Type B Aviation Obstruction Light
1. High intensity aviation aluminum casting chassis, IP68;
2. Low power consumption and long life LED chip ;
3. PC material Lampshade,resist corrosion,anti UV,anti shock ;
4. Lightning and surge protection;
5. Photoswitch,lighting on/off automatic
FAA Standard：
L-864
Type：
GS
Power voltage：
AC 110V/220V,DC 12V/24/48V
Power Supply Frequency：
50HZ～60HZ
Average power consumption：
≤20W
Flash rate：
Flashing 20~40times/min
Continuous working time：
200ms
Light intensity：
≥2000cd
Horizontal Out-put：
360°
Vertical Divergence：
≥3°
Service Life of the Light Source：
≥20years
Emitting Color：
Red
Overall Size：
255mm×255mm×210mm
Installation Size：
￠234mm×M8
IP Protection：
IP68
Optically Controlled Ambient Brightness：
50/100Lux
Ambient Temperature：
-40℃～70℃
Net Weight：
3.8kg
Anti-Wind Ability：
80m/s
Features
1.Full sealed structure base, casting by high intensity aviation aluminum alloy.
2.Special LED chips, with brightness, low power consumption and long life.
3.PC material cover, provides strong corrosion resistance, UV resistance, impact resistance.
4.Its lightning protection ability and control circuit with anti surge protective device that can apply to poor working environment.
5.A variety of work modes can be customized according to customer’s requirements.
6.Built-in photocell can switch ON/OFF the light at dawn or at dusk (optional).
Attention / Usage Tips
1.Check whether the supply voltage does comply with the rated voltage of device.
2.Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
3.Afterfinished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
4.Non-professional workers cannot do the device maintenance, in order not to expand the error and be hurt.
Application
Block
