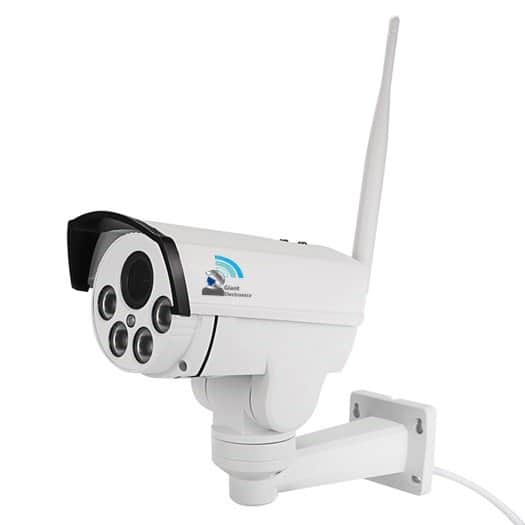

-2.0 megapixel HD IP camera, maximum resolution 1920*1080;
-, support AP mode;
-Support up to 128G TF card storage;
-2.7-13.5mm 5X optical zoom auto focus lens;
-Built-in MIC, support voice monitor;
-Pan tilt rotation, horizontal:355°&vertical:90°;
-Waterproof level IP66;
-4pcs array infrared LEDs, night vision distance 60m;
-Support P2P, view & anywhere & anytime;
-Elegant outline and easy installation;
-Provide android & ios APP and professional CMS PC client software.
Specifications
|
Model
|
|
|
Video
|
Sensor
|
2.0 megapixel 1/2.8" SONY307 star light CMOS
|
|
Video resolution
|
Main stream: 1920x1080@18fps, 1280x720@25fps
Sub stream: 640x352@25fps, 320x176@25fps
|
|
Video compression
|
H.264 / H.265
|
|
Lens
|
2.7-13.5mm 5X optical zoom auto focus lens
|
|
View angle
|
96°~26.2°
|
|
Night vision
|
4pcs array infrared LEDs, night vision distance 60m
|
|
Audio
|
Audio compression
|
G.726/G.711
|
|
Audio code rate
|
8Kbps, 16bit
|
|
Audio input
|
Built-in MIC, support voice monitor
|
|
Alarm
|
Motion detecting alarm
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
Alarm linkage
|
Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
|
|
Alarm recording
|
Support Micro SD card and PC client linkage alarm recording
|
|
|
|
|
|
|
|
|
Interface type
|
Micro SIM card, Plug and play, no need to set
|
|
Storage
|
Micro SD card
|
Support up to 128G micro SD card
|
|
Recording mode
|
Alarm record, timing record,
|
|
Video playback
|
Support APP, IE browser, remote client play and download the video
|
|
PTZ
|
Rotation angle
|
Horizon: 0~300°, Vertical: 0~60°
|
|
Horizontal speed
|
12°/S
|
|
Vertical speed
|
12°/S
|
|
Preset
|
Support 8 preset points
|
|
General specification
|
Power
|
DC12V 2A
|
|
Operating environment
|
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
|
|
Shell material
|
All metal shell
|
|
Waterproof level
|
IP66
|
|
Product size
|
150mm×90mm×125mm(L×W×H)
|
|
Product weight
|
1.0kg
|
|
Package size
|
225mmx205mmx120mm(L×W×H)
|
|
Package weight
|
1.3kg
|
|
Reset button
|
Support
|
