Technical parameter
Electric current: AC85V~264V/50-60HZ
Power: <20W, low consume, low radiation
Net weight: 90KG
Workplace environment: -20°C~+50°C
Standard: GB15210-2003, CE
Standard External size: 2230mm(H)X835mm(W)X580mm(D)
Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)
Characteristic & Function
Program Self-diagnostic when power on,
automatically checking left and right door panel,
LED light and choose the best working frequency.
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements.
Preset the metal size, weight, volume, location to exclude the coin, key, belt.
Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
LED alarm: Six LED strip on the top control unit, indicate the alarm zones
Automatically count passengers and alarm times
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording , tapes, etc.
Application

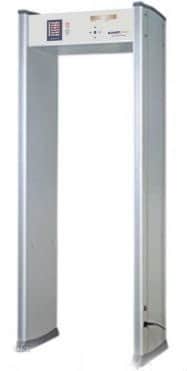

Walk Through Metal Detector is designed for Exhibition center, Electronic Factory, Bank, Prison,
Government office, Casino...etc
