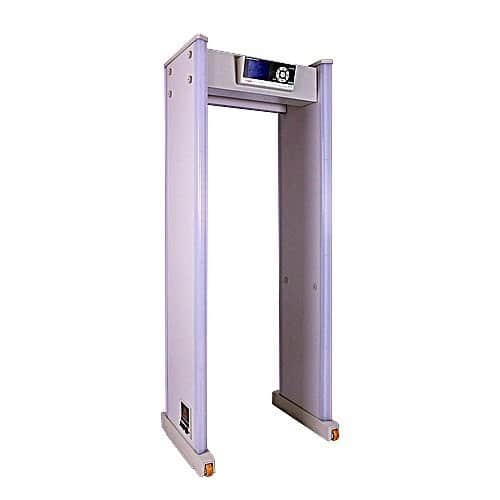

The new Garrett PD 6500i walkthough metal detector (Model 1168410) utilizes Garrett's exclusive digital signal processor (DSP) -based technology to provide superior target detection coverage on the left, center and right side of the body from head to toe. Unique 33-zone pinpoint detection assures the ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications, including the new Transportation Security Administration's (TSA) Enhanced Metal Detector System required for all U.S. airports. Multi-dimensional coil design detects guns, knives and other flat and rod-shaped weapons regardless of archway location. Zone adjustment enables the Garrett PD 6500i maximum detection regardless of environmental challenges. Easy-to view eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel. Easy operation with backlit LCD and LED bar graphs for continuous online operating status and self-diagnostic reporting.
-
Operating Temperatures
-4F (-20C) to + 158F (70C); Humidity: To 95% non-condensing
-
Power
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards.
-
Weatherproofing / Foreign Object Protection Standards
Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529.
-
Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
-
Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
-
Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
-
Traffic Counter
Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
-
Synchronization
Dual channels and DSP circuitry allow several PD 6500i's to operate simultaneously in close proximity to one another.
-
Interference Suppression
Special Garrett DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
-
Programs
Sixteen (16) independent programs designed to meet all installation-specific requirements including the new Enhanced Metal Detector (EMD) requirements for U.S. airports.
-
Alarms
Audible tone and volume adjustable. Bright LED visual alarm.
-
Target Pinpointing Lights
Thirty-three (33) distinct zones are displayed with two (2) independent columns of LED's located on exit side of PD 6500i.
-
Pacing Lights
International symbols
-
Warranty
Limited 24 months, parts and labor
