SC12000LBS (12/24V) 12000 lbs

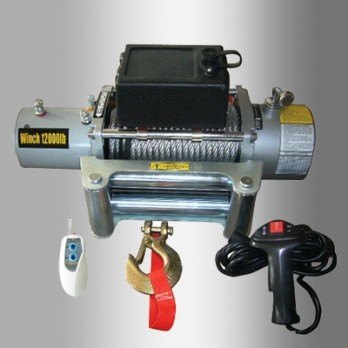

Heavy Duty Electric Winch 12000 LBS
FEATURES AND SPECIFICATIONS
| Rated Line Pull |
12000LBS (5443kgs) single line |
|---|
| Motor |
12V 5.5hp/4.0kw 24V 5.98hp/4.46kw Series Wound |
|---|
| Control |
Remote switch, 12ft(3.7m)lead |
|---|
| Gear train |
3 Stage Planetary |
|---|
| Gear train ratio |
265:1 |
|---|
| Clutch |
Sliding Ring Gear |
|---|
| Braking Action |
Automatic In-The-Drum |
|---|
| Drum Size |
Diameter 2.52"(64mm)Length 8.82"(224mm) |
|---|
| Cable |
94ft of 3/8"dianeter (28m of 9.4mm diameter) |
|---|
| Fairlead |
4-Way Roller Fairlead |
|---|
| Remote Control |
Included |
|---|
| Battery |
Recommended:650CCA minimum for winching |
|---|
| Battery Leads |
2 gauge,72"(183mm) |
|---|
| Finish |
Dark gray powder coat |
|---|
| Overall Dimensions |
21.1"×6.3"×9.5"(537mm×160mm×280mm) |
|---|
| Mounting Bolt Pattern |
254mm×114.3mm |
|---|
| Weight |
N.W.37.5kg G.W.39.5kg |
|---|
| Packing Size |
57×19×34.5cm 1PC/CTN |
|---|
