מפרט טכני SC12000LBS (12/24V) 12000 lbs

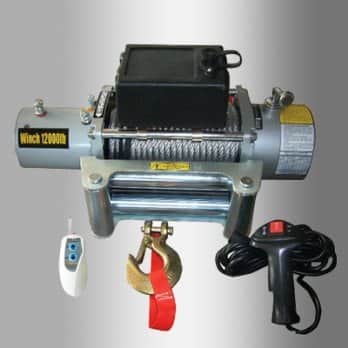

Heavy Duty Electric Winch 12000 LBS
FEATURES AND SPECIFICATIONS Rated Line Pull
12000LBS (5443kgs) single line
Motor
12V 5.5hp/4.0kw 24V 5.98hp/4.46kw Series Wound
Control
Remote switch, 12ft(3.7m)lead
Gear train
3 Stage Planetary
Braking Action
Automatic In-The-Drum
Drum Size
Diameter 2.52"(64mm)Length 8.82"(224mm)
Cable
94ft of 3/8"dianeter (28m of 9.4mm diameter)
Fairlead
4-Way Roller Fairlead
Battery
Recommended:650CCA minimum for winching
Battery Leads
2 gauge,72"(183mm)
Finish
Dark gray powder coat
Overall Dimensions
21.1"×6.3"×9.5"(537mm×160mm×280mm)
Mounting Bolt Pattern
254mm×114.3mm
Weight
N.W.37.5kg G.W.39.5kg
Packing Size
57×19×34.5cm 1PC/CTN
